Topic: DIY Earthbox (with tute) and 1 metric ton of Pics!  (Read 4419 times)
Tags for this thread:  Add new tag
Share the love... Bookmark this on Delicious Submit to reddit
AeonGoddess
Friend of Craftster Friend of Craftster

Meme-queen
Offline Offline

Posts: 234
Joined: 26-Mar-2006

I dare you to make less sense.


View Profile WWW available for personal swaps



(message id #3613658)
« on: July 22, 2009 12:34:10 PM »

I live with my boyfriend in NYC. We have a pretty decent sized apartment (for NY,) but the best part of it is the backyard. Of course, the problem with our backyard is that it is entirely dirt free. Totally. Concrete. There's also a tin-roofed carport that blocks light from much of the space. Sometime last year a friend of ours got us a cheap compost bin that we set up in a corner of the concrete yard, but without a garden it was just an elaborate kitchen waste disposal system.

We really wanted a garden this year. We talked through a lot of options in the spring, including a brief discussion of building raised beds along the walls of the yard and filling them with dirt. It was the math (over $400 dollars just for the dirt in such a system) that dissuaded us in the end.

Then I found this  book, and it changed our gardening lives. (Seriously. It is an awesome book, and one I think any urban gardener should own. It goes beyond gardening, too, and has instructions on fermenting, sprout growing, and yogurt making. The focus is totally on those with a lack of space, and it's a boon to anyone living out of an apartment. But I digress.)

We decided to follow the guide in that book to a DIY earthbox out of plastic storage containers. Now, the book doesn't contain a step-by-step photo process, but does spell things out a little more clearly than I'm about to. Smiley

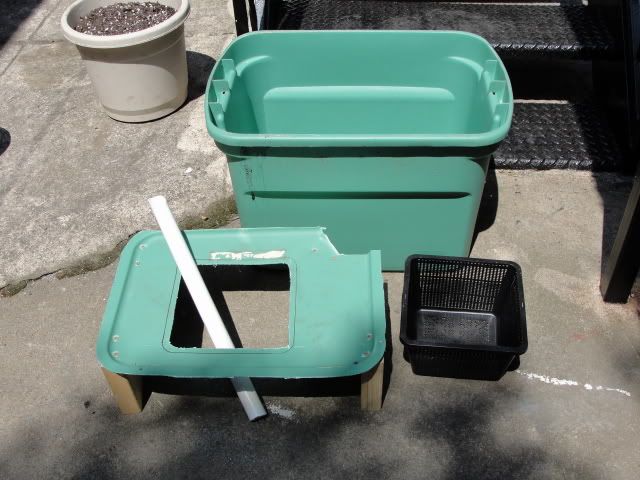

Step one- Early June. Assemble materials. We cut the lid of the container to fit inside it, about 1/3 of the depth up from the bottom, with a corner cut off the allow the pipe to pass through. We also purchased a pond basket from a garden center to sink into the bottom of the container. We made some legs for the lid out of scrap 2x4s to prevent it from collapsing. We used a length of PVC pipe for the watering tube. *NOTE* PVC has a tendency to leach chemicals. Next year we plan on replacing it with either copper or bamboo. Since this was an experiment, we went with the cheap option this time around (and frankly, I'm sure the non-organic super-market veggies are still worse for you.)  The pipe is cut at an angle at the bottom to prevent clogging in case some dirt should get into the reservoir.

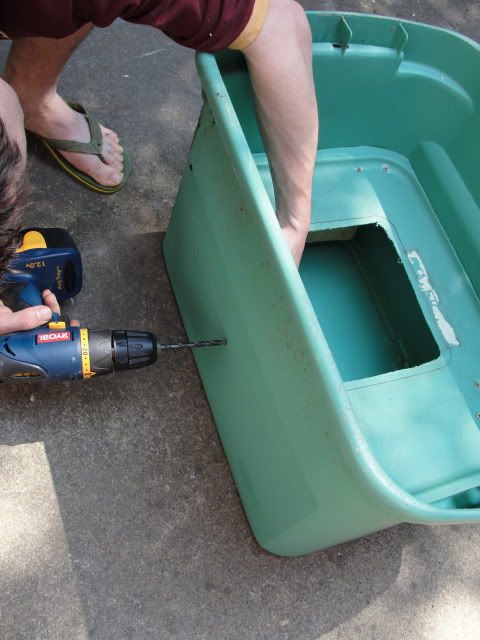

Step two- We put the lid-on-stilts contraption into the bottom of the container, and drilled a series of small drain holes right below the level of the lid. This will prevent the water from making the base layer of dirt all soggy. The goal is to make strong and hardy plants by forcing them to sink deep tap roots toward the hole in the middle. These drain holes also make it impossible to over-water. Ideal for the twitchy gardener!

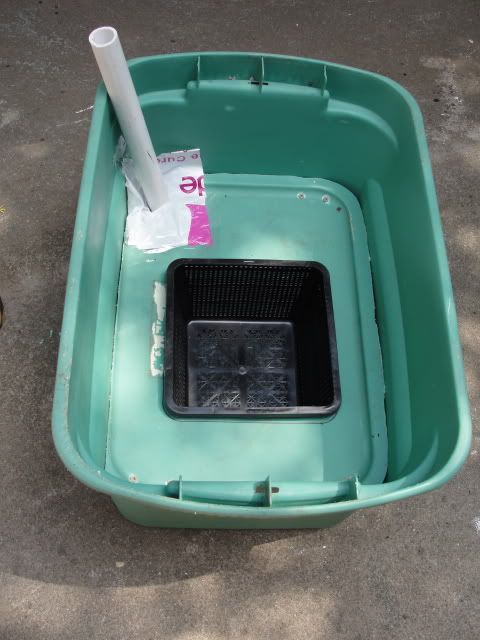

Step three- We installed the basket in the middle of the container, and the PVC pipe in its corner. With a stroke of frugal genius, we taped part of a plastic shopping bag around the pipe to create a seal and prevent dirt from getting in. Then we filled the basket with dirt, and gave it a good water.



Step four- We filled the boxes to the top with dirt. This step is not cheap- nice, non-miracle gro dirt is expensive, and it took about a bag and a half per container. Then we planted seeds! Our experimental garden this year was a row of yellow wax beans in each container, with cucumbers as the other row in one box and okra in the other.

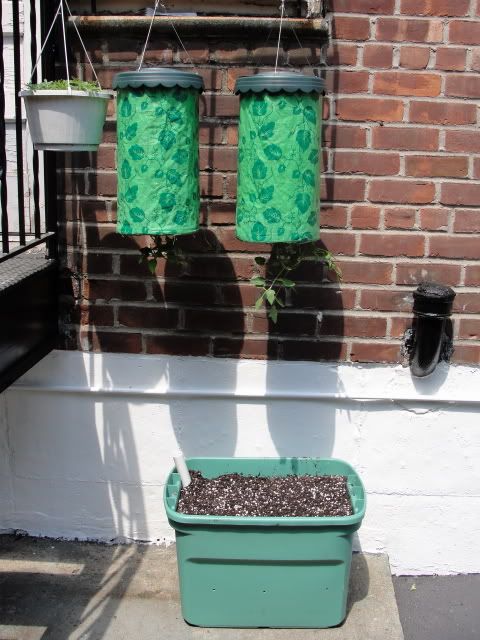

Step five: Give it a good water on top, wait for magic. We kept watering the top (aided by copious amounts of rain this June *grumble grumble*) until we had some healthy little sprouts, then we switched over to watering through the reservoir only. Here's the naked little box under our topsy turvys (another fine investment for the small space garden.)


And then we waited. My BF has been topping up all our containers with compost periodically, and the plants seem to like it. Our composter looks like it wouldn't hold much, but we've been filling it for a year and a half, and the decomposition rate is really fantastic; it's still less than half full:

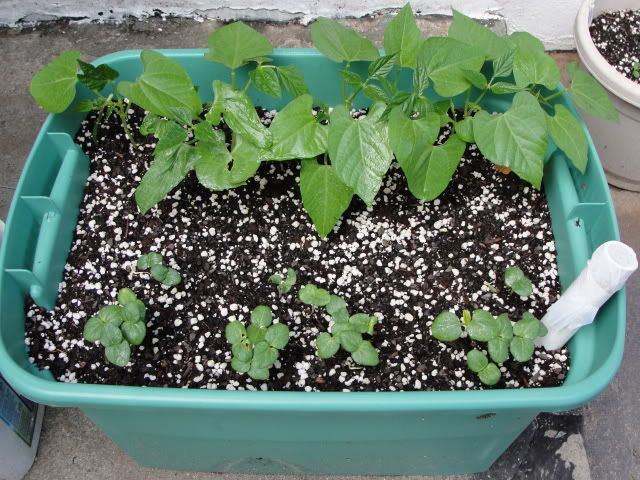

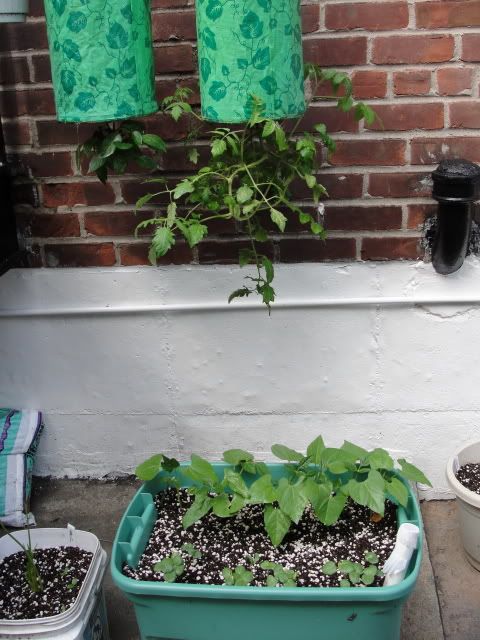

A few weeks later:

The beans totally loved the wet season. The okra was a little less happy, but once we started getting a little sunshine they perked right up. Not pictured is the box with the cucumber, which grew just a little more slowly than the beans. And the tomatoes seem to like the topsy turvy, huh?

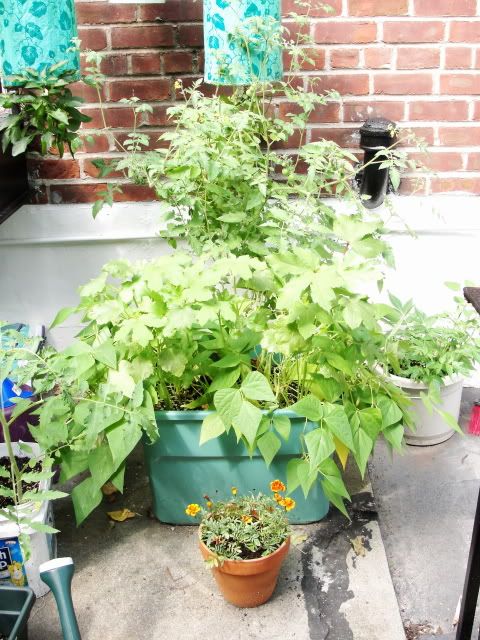

Now:

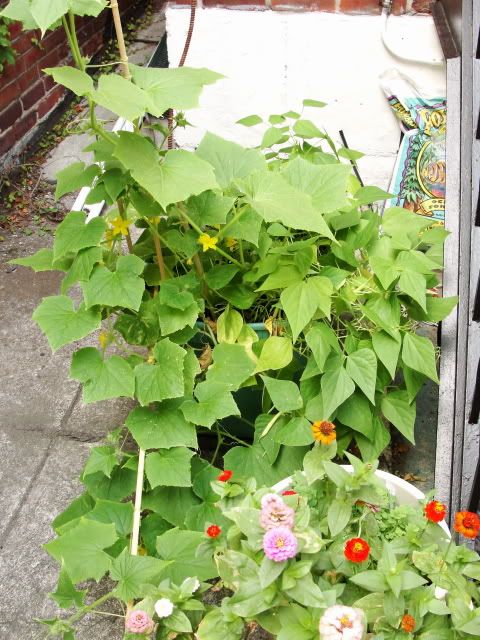

Cucumber box:

Seriously, the beans have taken over, and the tomato is poised to destroy Tokyo with its massive size. The cucumber has about a million blooms, and the okra is growing into baby trees (no flowers yet, but its thinking about it.)

And we had our first bean harvest yesterday! About a pound of delicious beans came off the plants, and there's at least another pound that'll be ready to harvest in another couple days. And more that are still growing!


It was totally worth the cost in dirt just to see these miraculous plants grow from seeds to fruit. And it really proved to me that a small space is no excuse not to have a garden.

So. Um. That's my ESSAY. And thanks to anyone who actually read the whole tedious thing!
« Last Edit: July 22, 2009 01:43:13 PM by AeonGoddess - Reason: fixing a link. » THIS ROCKS   Logged
landofoz
Offline Offline

Posts: 232
Joined: 15-Jan-2008

View Profile



(message id #3613706)
« Reply #1 on: July 22, 2009 01:05:28 PM »

I read the whole thing!   Grin  I live in a teeny-tiny house, but we're in KS and dirt is abundant!  I love gardening and have a good sized one at the moment.  Your garden is absolutely beautiful and the plants are growing wonderfully!  One big advantage to watering from the bottom, as you are, is that you are not getting soil-born diseases moisture to grow on top of the soil and you are preventing water from splashing onto the leaves and transmitting the same disease.  You have a beautiful oasis!  Cheesy
THIS ROCKS   Logged
joybilee
Offline Offline

Posts: 354
Joined: 04-Dec-2006

Gimme all your yarn & nobody gets hurt!


View Profile WWW



(message id #3613742)
« Reply #2 on: July 22, 2009 01:29:33 PM »

awesome!  but i couldn't get your book link to work. Undecided
THIS ROCKS   Logged

Eliea
Friend of Craftster Friend of Craftster

Proverbs 31:13 "She seeketh wool, and flax, and worketh willingly with her hands."
Offline Offline

Posts: 8646
Joined: 09-Aug-2006

Alpaca Pattern added to my shop!


View Profile WWW available for personal swaps



(message id #3613809)
« Reply #3 on: July 22, 2009 01:59:08 PM »

oh my gosh this is perfect! the drain holes(to prevent over watering like I tend to do) and the fact that this is encased are perfect for my front garden. We have problems with snakes so I can't really plant much for fear the copperheads will take up residence. as a result our house tends to look neglected and abandoned.
This would work great and you could replant something else in it when the summer plants die down.
Those topsy turveys are great too I'm going to have to get some of those. Thanks so much for posting about this project I think I might be inspired.

I was wondering do you put anything between the plastic base and basket and the bottom of the container is is this left empty for more drainage?
« Last Edit: July 22, 2009 02:03:19 PM by Eliea » THIS ROCKS   Logged

carmencrafter
No one can make it better than you can
Offline Offline

Posts: 595
Joined: 08-Mar-2009


View Profile



(message id #3613979)
« Reply #4 on: July 22, 2009 03:27:15 PM »

Oh this is such a great idea.  I was watching a show about a company that mass produces herbs and the owner was talking about the importance of watering the plants from below.  This earthbox waters from below and is small and compact.  Enjoy your crops  Smiley
THIS ROCKS   Logged

Surround yourself with beautiful things!!

Bernie Lomax died for your sins!
jj83
Offline Offline

Posts: 13
Joined: 29-Jul-2007


View Profile



(message id #3614004)
« Reply #5 on: July 22, 2009 03:35:29 PM »

i, myself, have a black thumb, but my mom is very talented with all things plant-related. she's always looking for fun new ways to grow small crops of veggies so i will be passing this along! thanks so much!
THIS ROCKS   Logged
noooitaremybirthday
Friend of Craftster Friend of Craftster

You don't have to type the whole thing...Call me Nooo :D
Offline Offline

Posts: 649
Joined: 12-Apr-2009

I'll believe it when I see it muchacho.


View Profile WWW



(message id #3614202)
« Reply #6 on: July 22, 2009 05:21:28 PM »

I'm definitely bookmarking this! Thanks for sharing!!!!!!!! Grin
THIS ROCKS   Logged

Visit my crafting blog! Updated DAILY!
http://i-crafted-this-today.blogspot.com
AeonGoddess
Friend of Craftster Friend of Craftster

Meme-queen
Offline Offline

Posts: 234
Joined: 26-Mar-2006

I dare you to make less sense.


View Profile WWW available for personal swaps



(message id #3614518)
« Reply #7 on: July 22, 2009 08:22:34 PM »

I was wondering do you put anything between the plastic base and basket and the bottom of the container is is this left empty for more drainage?

The space between the former lid and the bottom of the container is the reservoir. When you go to water your plants you'll pour water into the pipe until the reservoir starts to overflow through the drainage holes. It takes a lot of water... several gallons at a time to start... but then you just top it up once and a while and stop watering the dirt from above at all. I hope that was what you were asking. Smiley
THIS ROCKS   Logged
pinokeeo
Friend of Craftster Friend of Craftster

Making more than art, making a statement
Online Online

Posts: 5691
Joined: 08-Mar-2007

Fly me to the moon and let me play among the stars


View Profile



(message id #3614918)
« Reply #8 on: July 23, 2009 12:08:49 AM »

Ok, I read this whole thing.  I don't need container gardening.  But I think your whole story is fantastic, and your little(?) garden is great.
THIS ROCKS   Logged

If you're a woodcrafter of any kind, please take my poll
http://www.craftster.org/forum/index.php?topic=322300.0

The simplest toy, one which even the youngest child can operate, is called a grandparent.--
Sam Levenson

http://www.wists.com/pinokeeo
Eliea
Friend of Craftster Friend of Craftster

Proverbs 31:13 "She seeketh wool, and flax, and worketh willingly with her hands."
Offline Offline

Posts: 8646
Joined: 09-Aug-2006

Alpaca Pattern added to my shop!


View Profile WWW available for personal swaps



(message id #3616307)
« Reply #9 on: July 23, 2009 07:52:37 PM »

I was wondering do you put anything between the plastic base and basket and the bottom of the container is is this left empty for more drainage?

The space between the former lid and the bottom of the container is the reservoir. When you go to water your plants you'll pour water into the pipe until the reservoir starts to overflow through the drainage holes. It takes a lot of water... several gallons at a time to start... but then you just top it up once and a while and stop watering the dirt from above at all. I hope that was what you were asking. Smiley
Yep that's what I was wondering! Thanks so much for the info! I think this is totally something we could do. Smiley
THIS ROCKS   Logged
