Today's tutorial is one we've been meaning to post for a while now, and are excited to finally share with you. For those of you who are unfamiliar with Print Gocco, we'll start with a brief intro to what we refer to as The Little Machine That Could.



Print Gocco is a small, inexpensive, and easy to use screen printing tool that originated in Japan. Gocco uses flash bulbs similar to those found in old cameras to thermally imprint an original image onto a master screen. Prints are made by pressing the ink-applied master screen against a sheet of paper placed on a sponge pad. While Riso (the company to thank for Print Gocco) "officially" ceased production of the Gocco in 2005, you can still buy them online through a few different suppliers.

The first step is to create your design. For simplicity's sake, we're going with a one color design for this tutorial. There are many ways to create your design -- rubber stamps, drawing by hand, designing on a computer, etc. One thing to keep in mind when designing: unless your design is printed using a laser printer, you MUST use a photocopy of your original design. The reason for this is in the thermal imaging process Gocco uses to create the screen from your design. The flash bulbs reflect heat from the black carbon-based image on the original to "burn" the image into the master screen. Carbon is not present in all kinds of ink, therefore you must use a photocopy (which is carbon-based).

Once you have the photocopied original, you're ready to Gocco! Let's get started!

Step 1
If you haven't done so already, install your 2 AA batteries into the top handle of the Gocco.



Lay a blank piece of paper over the sticky sponge so that your original doesn't stick to it while burning your master screen. Then lay your design on top of the blank paper.



Step 2

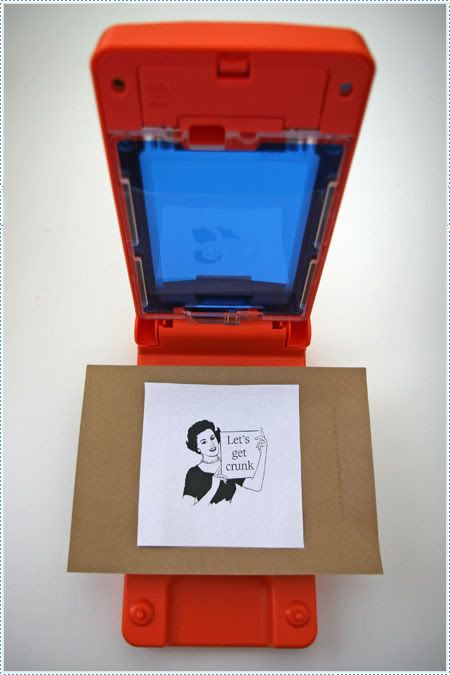

Slide the Blue Filter into place, making sure it is secured on all sides.



Slide master screen into place, making sure the arrowed tab goes into the slot on the lower left side. Gently bend the stop to lock the top tabs in place.



Step 3

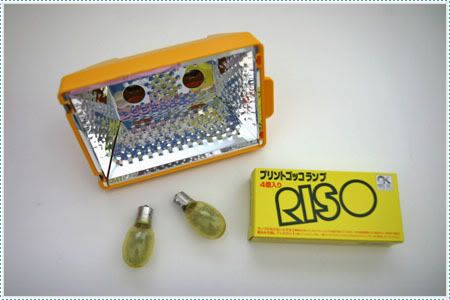

Screw two flash bulbs into the lamp housing unit.





Step 4
It's a good idea to think about where you want your design to be printed on your project and arrange your original accordingly. Closing the lid and looking through the window is helpful. We've centered our image in the window and flipped it upside down. Since we'll be printing our design on cards, it will be easier to consistently print in the same spot if we align the bottom of the card with the edge of the sticky sponge.



Step 5
Place the lamp housing unit in place, matching the arrow on the Gocco with the arrow on the unit, and gently push in into place until it locks in.



Step 6
Push down firmly until the flash bulbs fire. It's not a bad idea to look the other way while doing this -- the flash is VERY bright.



Step 7
Remove the lamp housing unit and set it aside to allow the bulbs to cool down. DO NOT TOUCH THE BULBS! They will be extremely hot. We recommend setting them aside until you're done printing, then you can unscrew them and throw them away (yes, they can only be used once).

Step 8
When you open the lid, your original should be stuck to the master screen. Carefully peel your original off of the screen. Take the screen and Blue Filter out of the lid. You're done with the Blue Filter at this point, you can put it away.



Step 9
Peel back the translucent film on the screen. Using the ink blocking foam, outline your design on the screen. If we were using more than one color, we would outline the different colored areas separately to prevent the ink from bleeding. This may seem unnecessary if you're only using one color, but it is very important. If you skip this step, your ink will just smush all over the screen and you'll have a huge mess and you'll have to constantly re-ink.



Step 10
If you value your workspace surface, put a piece of scrap paper under your screen and apply your ink liberally. Re-cover the screen with the translucent film you peeled down in the previous step.



Step 11
Place the screen back into place, again making sure the arrowed tab, sides, and top tabs are all secured into place. Remove the blank piece of paper from the sticky pad.



Step 12

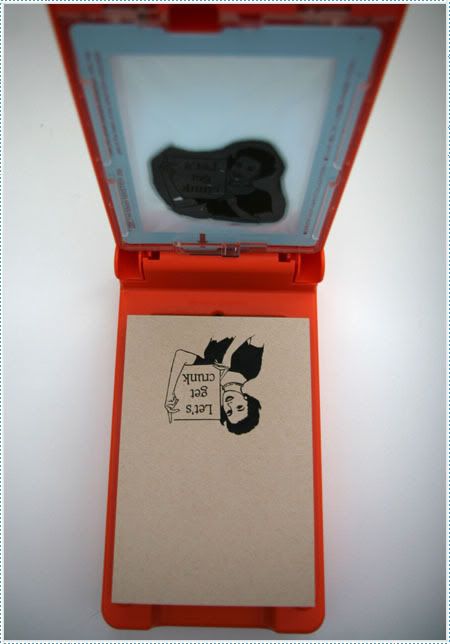

Place your card (or other item you're printing on) onto the sticky pad. Close the Gocco, pressing firmly, open it back up and -- VOILA!



Repeat Step 12 until you start to see areas of your design that are being printed unevenly, then remove the screen and re-ink. That's all there is to it!

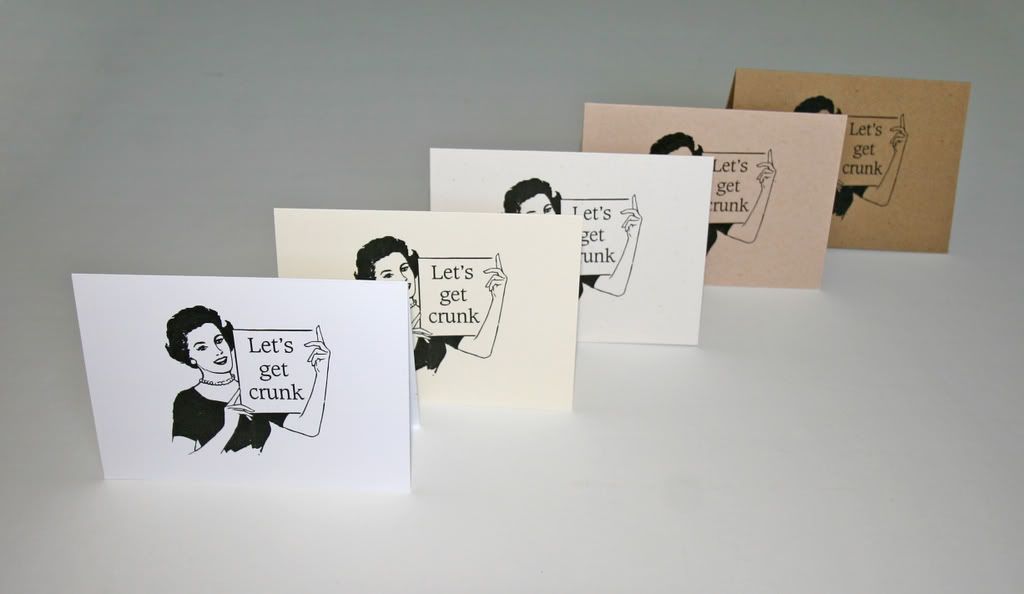

Here's our finished product:









Tutorial: Loco For Gocco

« Last Edit: January 05, 2009 01:35:22 PM by knitting_nyxxie - Reason: to remove blog link » THIS ROCKS   Logged
MissDisney
will you take me to gang practice? yis?
Offline Offline

Posts: 4456
Joined: 10-Jun-2007

You will never guess


View Profile WWW available for personal swaps
« Reply #1 on: June 12, 2008 02:05:56 PM »

damn, now i have to buy one of these...thanks for the step by step
THIS ROCKS   Logged

i think im back....9 months almost to the day but i miss art, and i missed you guys!
punkRockPaperScissors
JUST TRY IT
Offline Offline

Posts: 205
Joined: 04-Jun-2008

Craft or Die.


View Profile WWW available for personal swaps
« Reply #2 on: June 12, 2008 02:10:05 PM »

Damn! Just when I thought I got over my GOCCO lust; you post this awesome tut. Too bad they don't make them anymore and supplies are becoming harder (or at least way more expensive) to find.
THIS ROCKS   Logged

if we all did the things we are capable of doing, we would literally astound ourselves - thomas edison

available here:
http://punkrockpaperscissors.blogspot.com/
craftershock
« Reply #3 on: June 12, 2008 02:10:22 PM »

damn, now i have to buy one of these...thanks for the step by step

Yeah, they're pretty awesome.. and addictive! You're welcome!
THIS ROCKS   Logged
craftershock
« Reply #4 on: June 12, 2008 02:12:03 PM »

Damn! Just when I thought I got over my GOCCO lust; you post this awesome tut. Too bad they don't make them anymore and supplies are becoming harder (or at least way more expensive) to find.

Haha! You can try but you can't get over Gocco!! Yeah, supplies are getting harder to find, but at least they're still out there... for now. Not like Polaroid film which disappeared immediately after they announced the end of production.
THIS ROCKS   Logged
MissDisney
will you take me to gang practice? yis?
Offline Offline

Posts: 4456
Joined: 10-Jun-2007

You will never guess


View Profile WWW available for personal swaps
« Reply #5 on: June 12, 2008 02:16:37 PM »

well that just sucks...

ill have to learn screen printing another way i guess (it was just neat that it was all in one..)
THIS ROCKS   Logged

i think im back....9 months almost to the day but i miss art, and i missed you guys!
ritapizza
« Reply #6 on: June 12, 2008 02:23:49 PM »

Is it really inexpensive?
I've always found that they cost too much for me.
Where is a good place to buy one?
I would love to get started on gocco!
thx.
THIS ROCKS   Logged

craftershock
« Reply #7 on: June 12, 2008 02:35:06 PM »

Is it really inexpensive?
I've always found that they cost too much for me.
Where is a good place to buy one?
I would love to get started on gocco!
thx.

Definitely inexpensive as compared to full-scale screen printing machines. Obviously there are cheaper ways to screen print, but the Gocco is an awesome all-in-one and really easy to use machine. You can get a full starter kit that has everything you need to start printing for $150 from printaddict.net.
THIS ROCKS   Logged
ritapizza
« Reply #8 on: June 12, 2008 03:07:08 PM »

Awesome, thanks!
I've done screen printing in a studio at school but don't think I can ever have that ideal set up at home. Gocco sounds like a good alternative.
« Last Edit: June 12, 2008 03:07:23 PM by ritapizza » THIS ROCKS   Logged

timid_gothica
Offline Offline

Posts: 712
Joined: 18-Sep-2007

I will spray paint your face!


View Profile
« Reply #9 on: June 12, 2008 03:27:34 PM »

That's really sweet. I'm ganna look on ebay for one now. great tutorial.
THIS ROCKS   Logged

It's a strange world. Some people get rich and others eat shit and die
- Hunter S. Thompson

my etsy!
http://www.etsy.com/shop.php?user_id=5779650
